Product Description
| TECHNICAL SPECIFICATIONS | ||
| PRODUCT NAME | EKOBOT | |
| PRODUCT SUB-NAME | BR 5+1 | |
| NUMBER OF AXES | 5+1 | |

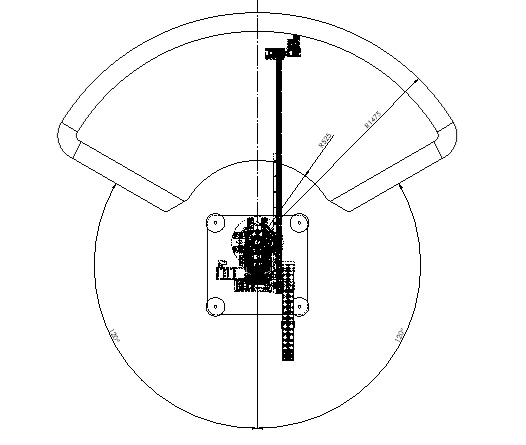

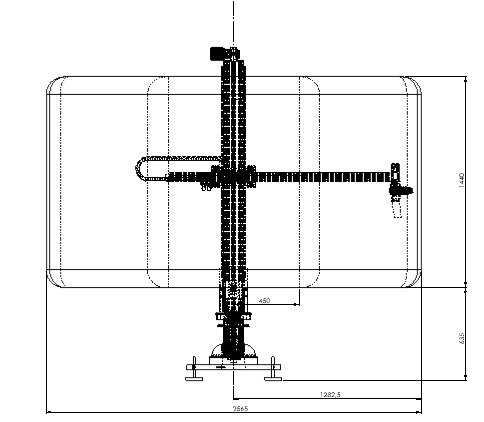

| WORKING SPACE | REACH | 1475mm |
| 1st AXIS | 180° | |
| 2nd AXIS | 1200mm | |
| 3rd AXIS | 900mm | |
| 4th AXIS | 180° | |
| 5th AXIS | 180° | |
| 6th AXIS | 360° | |
| LOAD CAPACITY | 1.2 KG | |
| REPEATABILITY | 3mm | |
| ENERGY REQUIREMENT | 24V DC 5A | |
| 380 AC 20A | ||
| THREE-PHASE | ||
| ENVIRONMENTAL CONDITIONS | TEMPERATURE | $+10^{\circ}$ - $+40^{\circ}$ |
| CONTROLLER | FCT 640 1.0 GHz Dual Core | |
| CONFIGURATION | ON - BOARD IO | 16 I / 16 O |
| COMMUNICATION | ETHERCAT | |
| CanBus | YES (VAR) | |
| TOUCH SCREEN | TABLET PC | |
| RECORD - PLAYBACK FUNC. | YES (VAR) | |

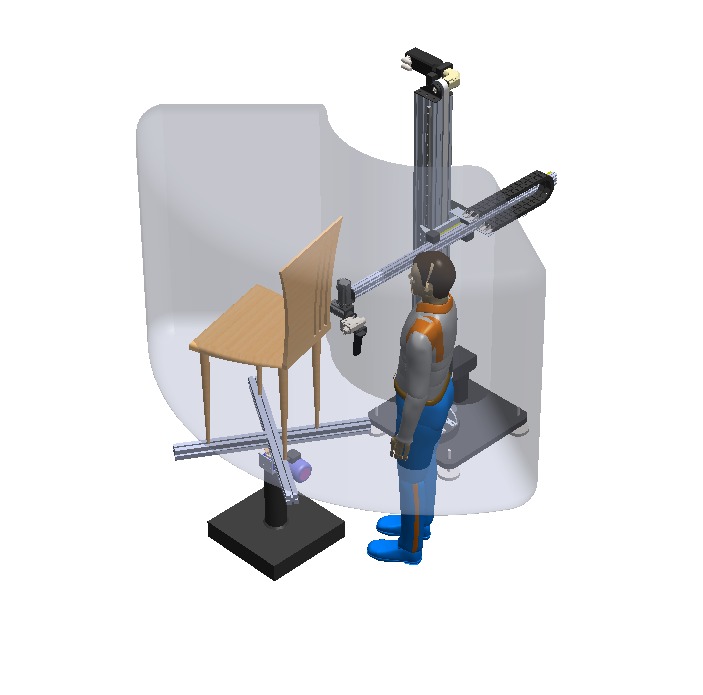

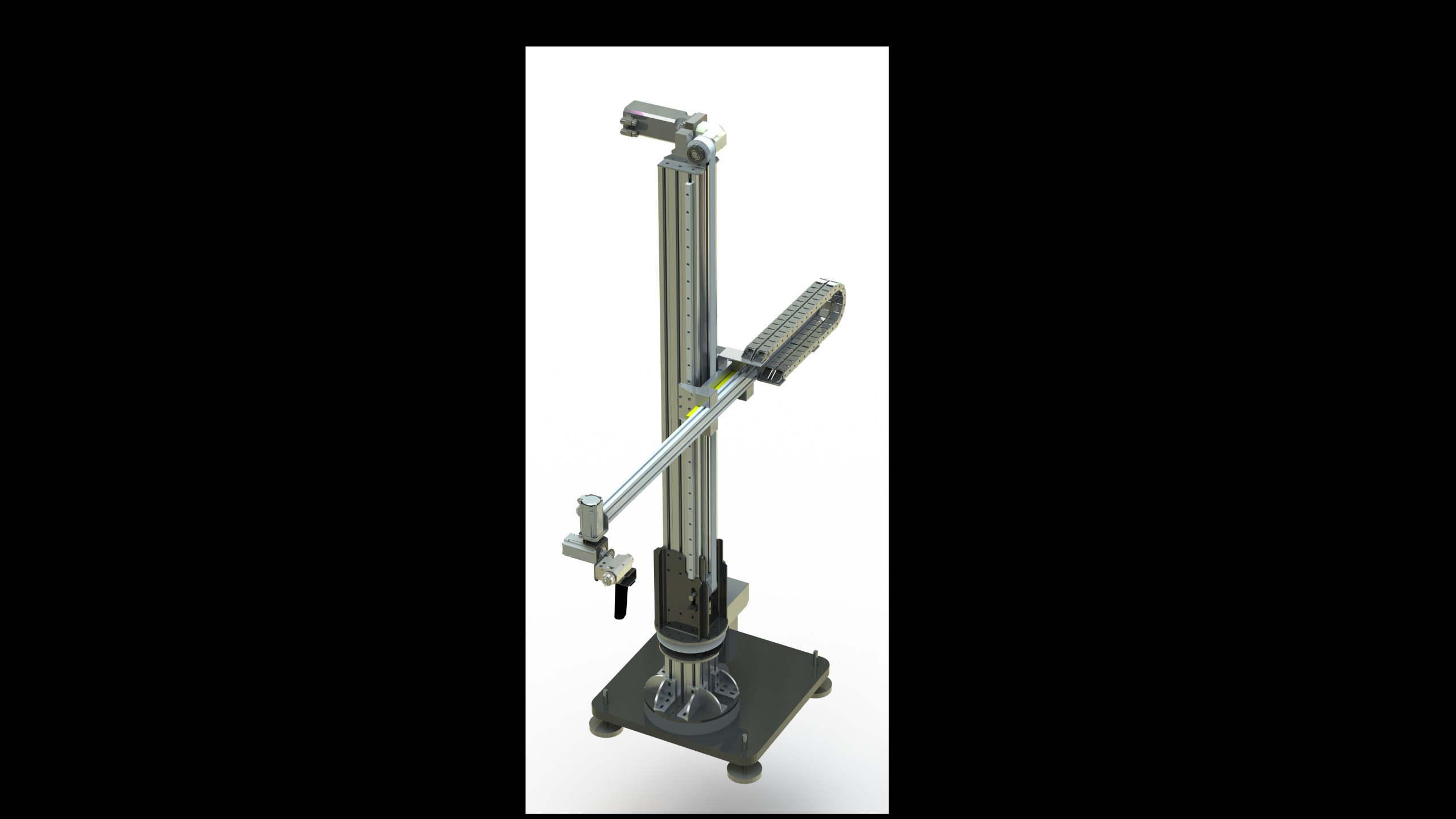

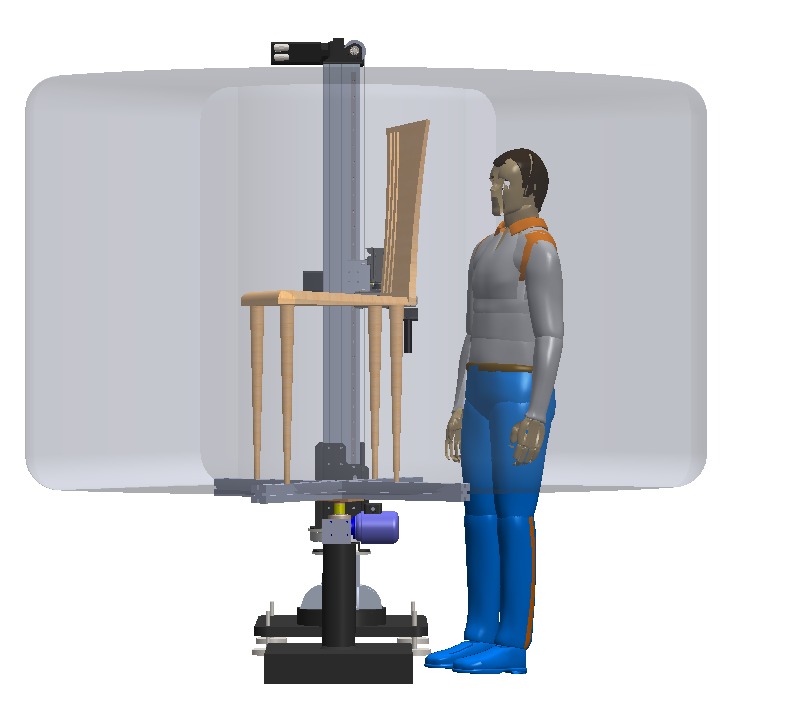

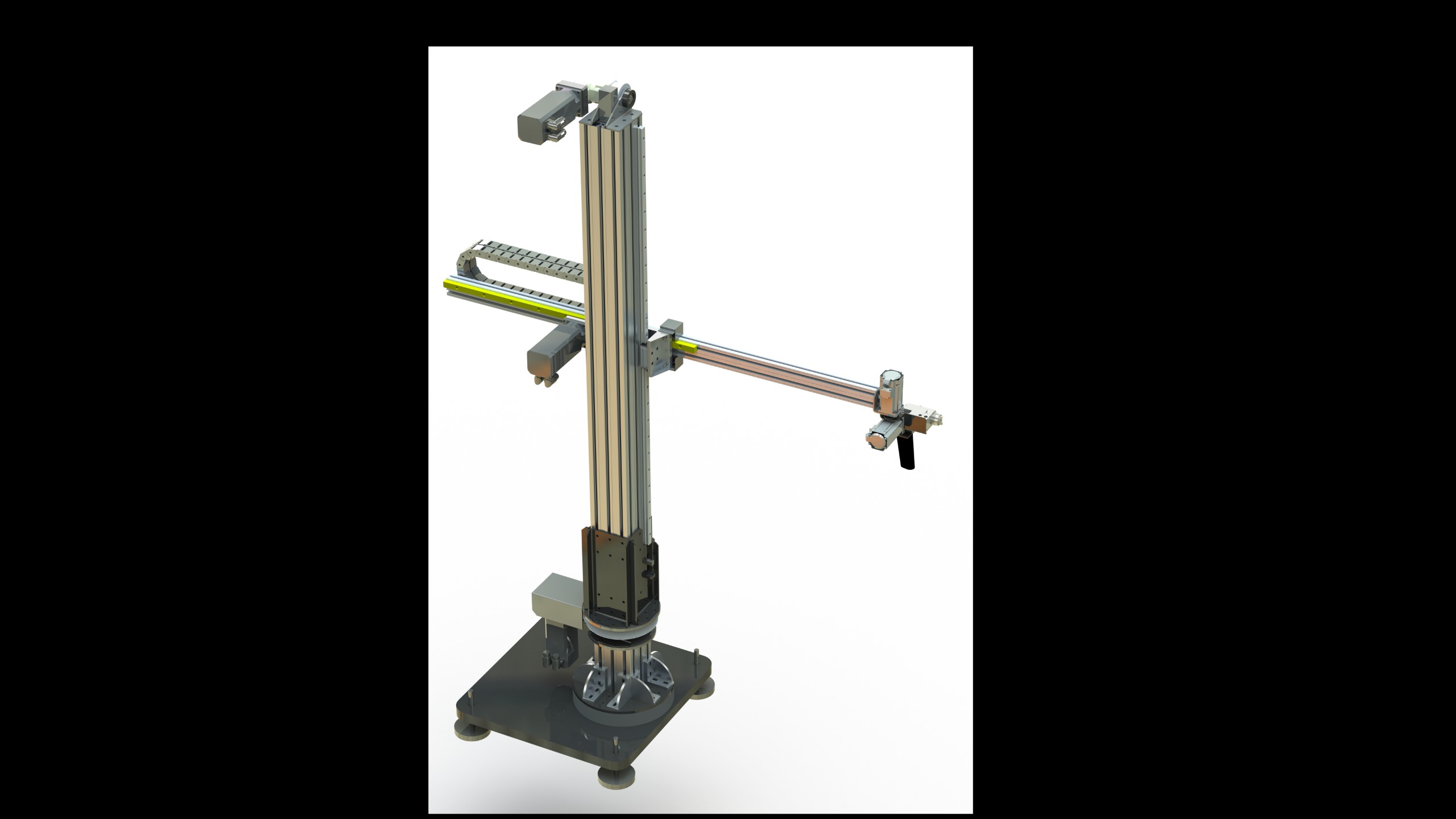

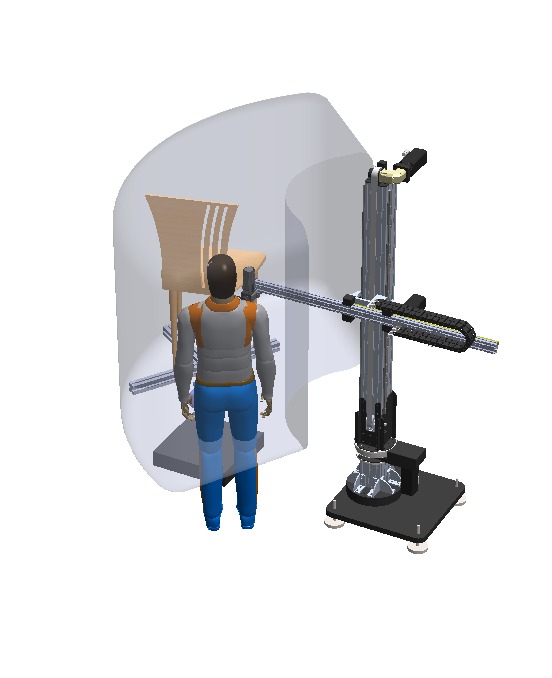

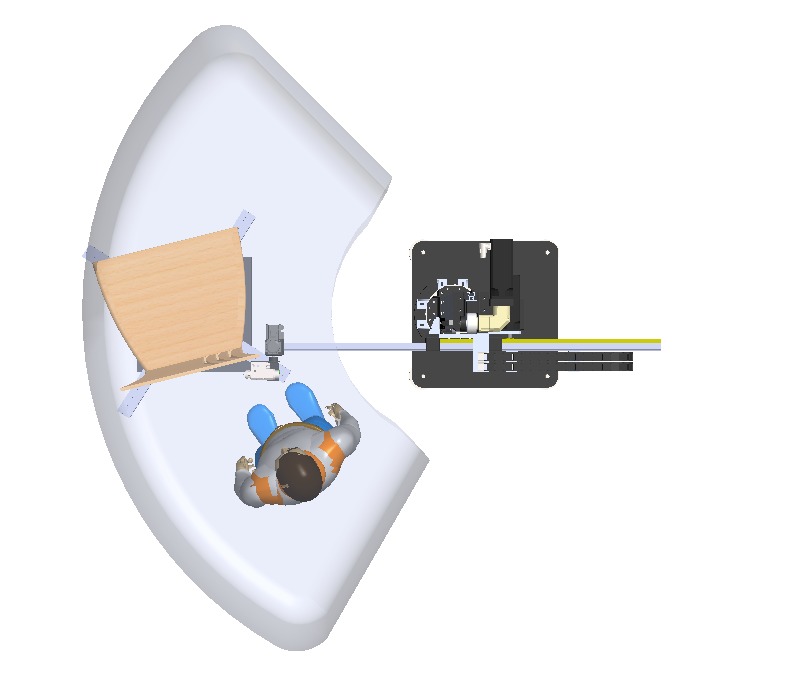

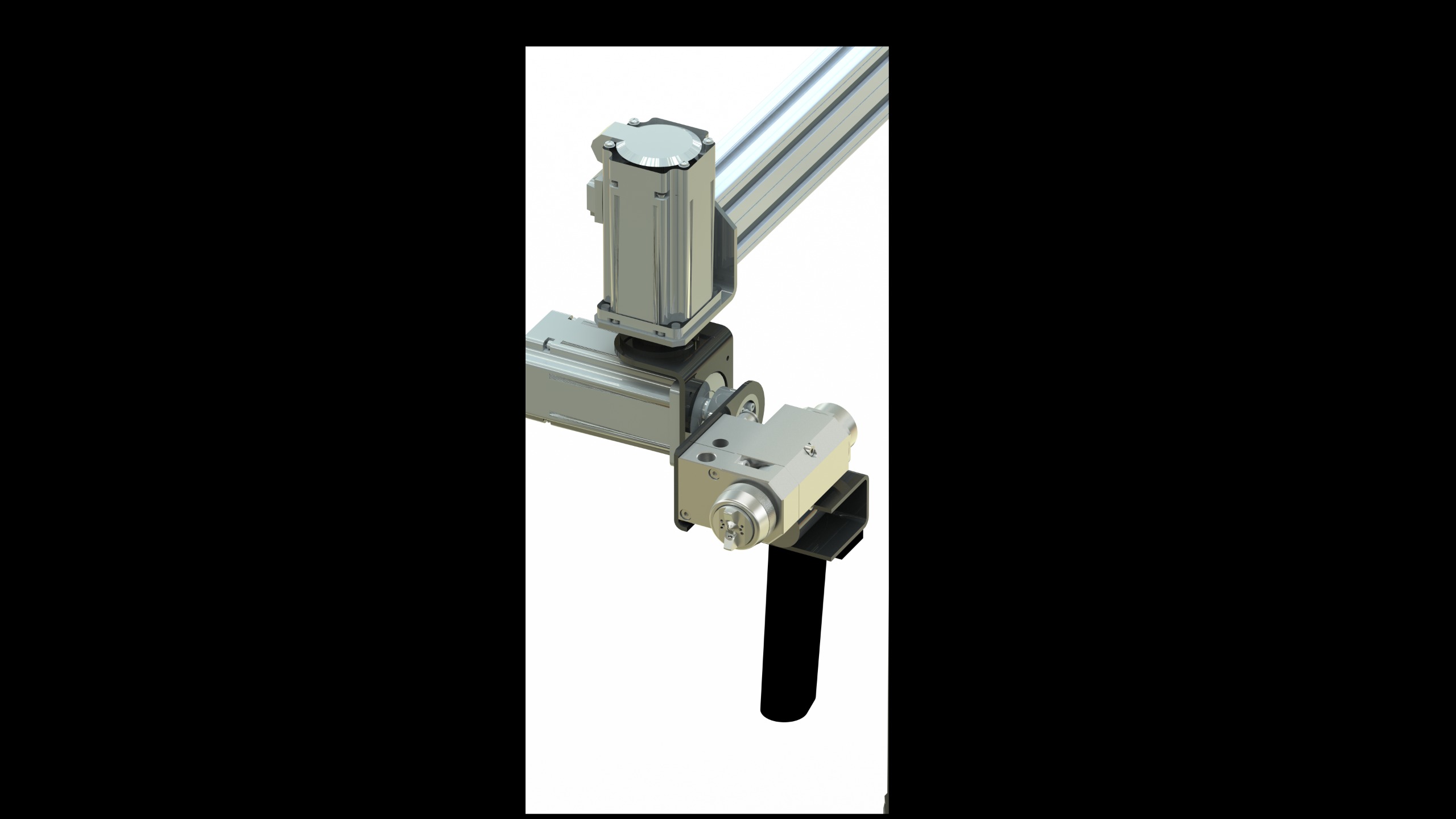

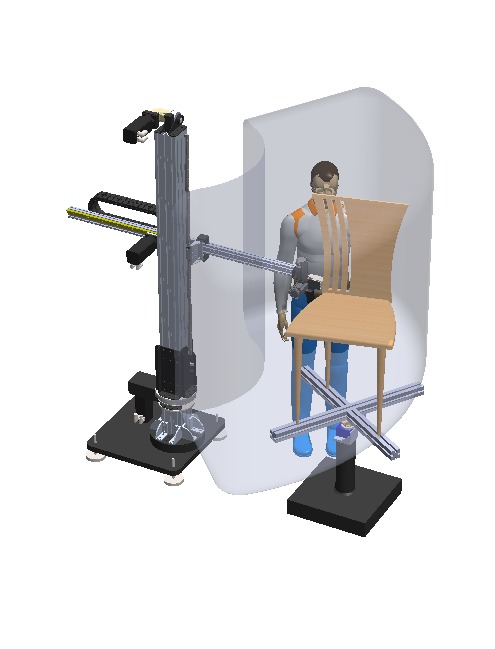

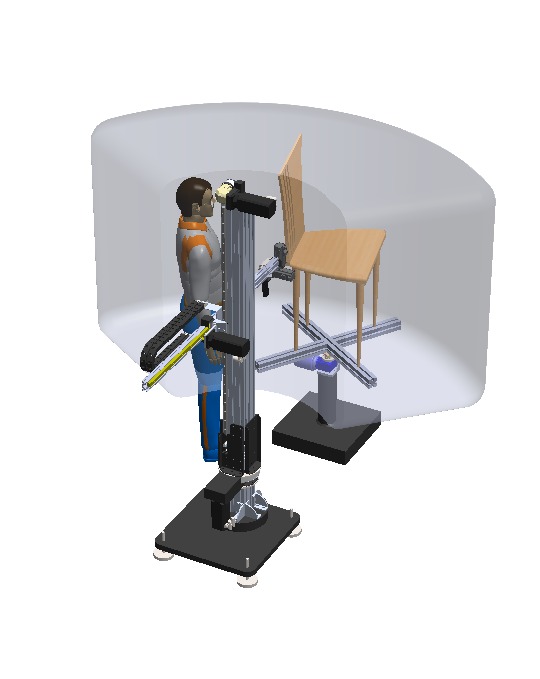

Photo Gallery
