Product Description

All kinds of wood Machine, aluminum, Is an ideal machine for small and medium enterprises measure is specially designed for processing plastic materials, etc..

Kitchen, bathing caps and benches, office and home furniture, integral of the door panels and any decorative material and / or gives excellent results in processing in parts.

SIZE and SPEED WORK

X-axis : 2100 mm

Y-Axis : 4200 mm

Vector Easing : 40 mt / roof

Usage areas

Machine, all kinds of wooden and composite material, aluminum, It is specially designed for processing plastic materials, etc..

Kitchen, bathing caps and benches, office and home furniture, door panels and integrally all kinds of decoration materials processing industry and in particular the cover is an ideal machine has been designed to make all kinds of applications over the entire panel nesting.

BODY STRUCTURE AND BRIDGE SYSTEM

Machine body rectified steel, is treated integrally welded precision.

The machine basically consists of a movable bridge and Y-axis table at a constant above this table. Because the bridge is mounted by both the constant vibration plate, It has a very precise movement capability. X and Z-axis moving motor in vertical milling business is working on the bridge.

ORGANS OF MOVEMENT AND BEDDING

Linear X-Y axis moving unit mounted on the slides and on the rack-pinion is driven. With this system the machine at high speeds with a very precise movement capability and high performance quality.

Axial movement on linear guideways 4 Beds are provided independently from the point were followed by cars. This linear sliding carriage is also made of hardened steel have also self-lubricating properties.

The movement on the Z axis is controlled by worm.

“FLAT” WORK TABLE

In the manufacture of flat plate “COMPACT” are used special materials. Tabs smooth circulation of air during operation of the vacuum pump and divided into equal squares shaped channel to ensure tight adhesion to the surface, accordingly, the workpiece. These channels are the center of the machine is turned on by their milling precision zero.

Through the channels on the flat tray to place independently if desired vacuum cups that work independently is also possible by raising the workpieces.

In order to reset the pieces to be machined on the edge of the machine table 6 pneumatic gauge plungers (reference stop) There.

VACUUM PUMPS

Free Air Volume : 175 m3 / As x 2 Piece

Suction filter and flap settings are integrated into the system thanks to the modern design of the pump. This pump has a long service life with low operating and maintenance costs with a single shaft and direct drive system.

VERTICAL MILLING ENGINE

Tip : 9 Kw. ISO 30 – IS 32 (HSD) x 1 Piece

Turnover : 6.000 – 24.000 r / min.

Air blown dust removal system.

8 LINEAR POSITION CHANGE TEAM UNIT

Unit, In position on the rear side and the X axis of the machine is mounted linearly. The movement can be made in the short tool change thanks to this location and saves the maximum working time. Cone holders, ferrules and business teams are not included in unit.

DRIVE MOTORS

All AC axial movement, Digital and brushless “YASKAWA“SERVO motors and drives with yapılmaktakd.

All cables, air and lubrication hoses, It is hidden in axially movable cable ducts that are designed specifically for robotic applications. In this way protected against any kind of impact it may come from outside are.

COMPUTER AND CNC EQUIPMENT

Windows-based “OSAI“CNC unit, Turkish operating system and the CNC operator “AlphaCAM“Compatible interface software is available. PC color screen, keyboard, Mouse and is equipped with a wireless modem.

CAD-CAM PROGRAM

  • Thanks to the unlimited design CAD department
  • Ability to send work orders through the CAM section of all types of CNC machine
  • Panel optimization (nesting) Thanks to the layout Ability to work with minimum wastage
  • 3 And to work to create dimensional surface
  • Save time with optimization of tool paths
  • Three-dimensional simulation feature allows business to be able to see and correct errors prior
  • Ability to create your own text format and be able to handle
  • Ability to work done while on the job before sending it to the machine

Teleservices UNIT

Teleservices unit connected to a control panel consists of a special modem and communications software. This unit can be provided through direct access via the Internet to the machine and the necessary interventions can be made from the center.

WIRING AND Control cabinet

All cables, air and lubrication hoses, It is hidden in axially movable cable ducts that are designed specifically for robotic applications. In this way protected against any kind of impact it may come from outside are.

Milling engine “DELTA“Brands drive high freans (inverter) It is controlled by. All switching elements on the switchbox “SIEMENS“And / or”SCHENEIDER“Mark.

REMOTE CONTROL – OTM. TAKIM BOYU ÖLÇME – OTM. LUBRICATION

Manual control of every move from moment to moment with the machine control may feature.

The tool attached to the milling head and neck special tool length measuring sensor for automatically measuring and storing.

Periodically and automatically provides the necessary lubrication of components on the machine.

Photo Gallery

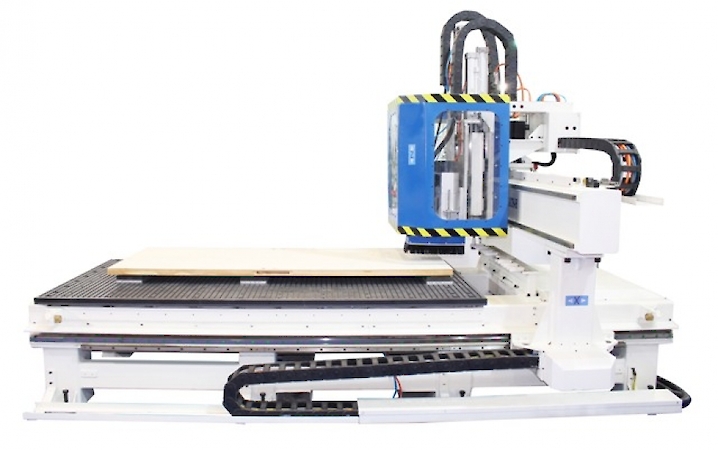

Vertical and Horizontal Milled CNC Door Processing and Sizing Machines
